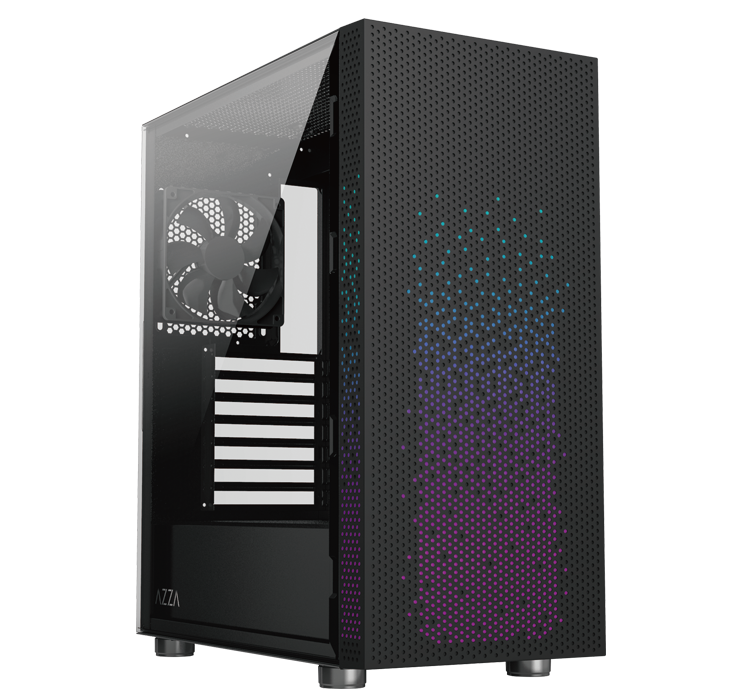

CELESTA 340

PRODUCT SPECIFICATIONS

DIMENSIONS:478mm x 210mm x 400mm (H x W x D)

COLOR:Black/Black(interior)

PRODUCT INFORMATION

‧Supports up to 320mm long video card.

‧Available Fan Ports:

3x120mm or 3x140mm Fan ports in the front

2x120mm or 2x140mm Fan ports on the top

1x120mm Fan port in the rear

‧Supports radiators up to 280/360mm in the Front

‧Supports radiators up to 240mm in the Top

Model
Model Name CELESTA 340
Model Number CSAZ-340/ CSAZ-340F
Specifications
Type ATX Mid Tower
Color Black/Black(interior)

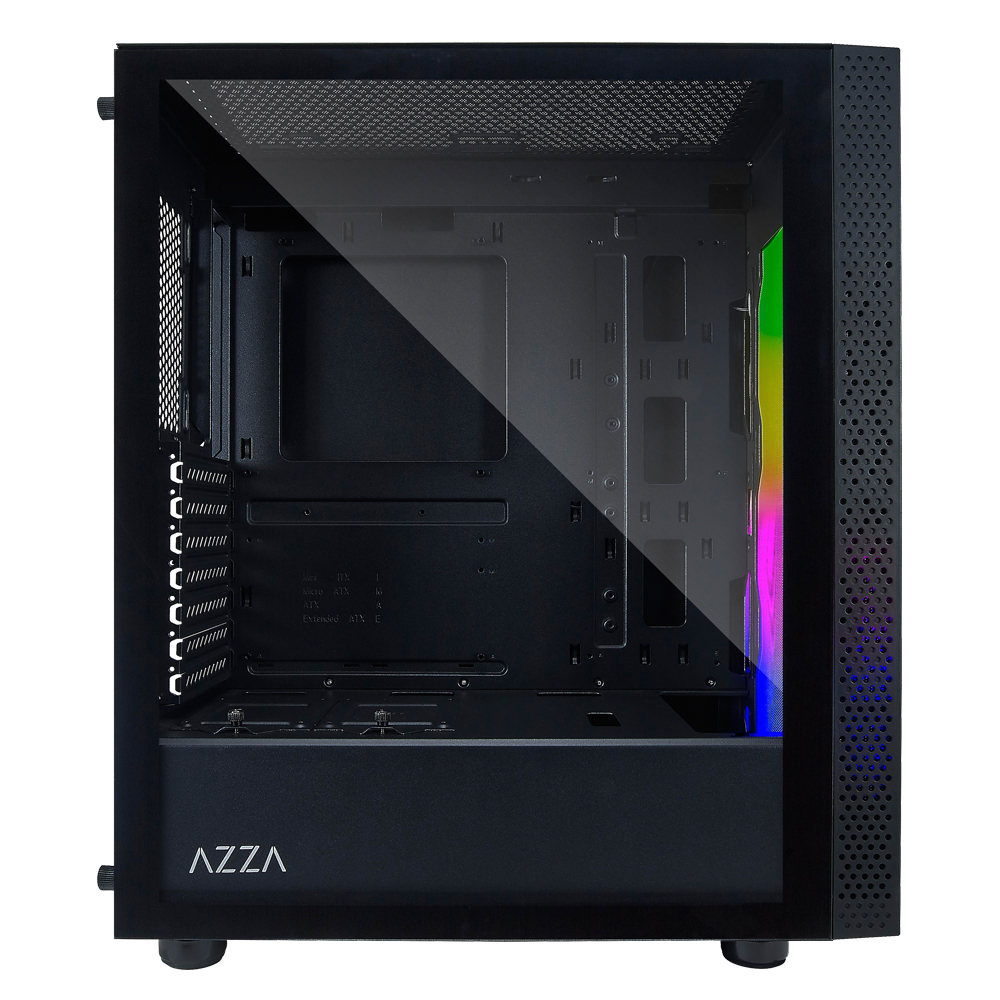

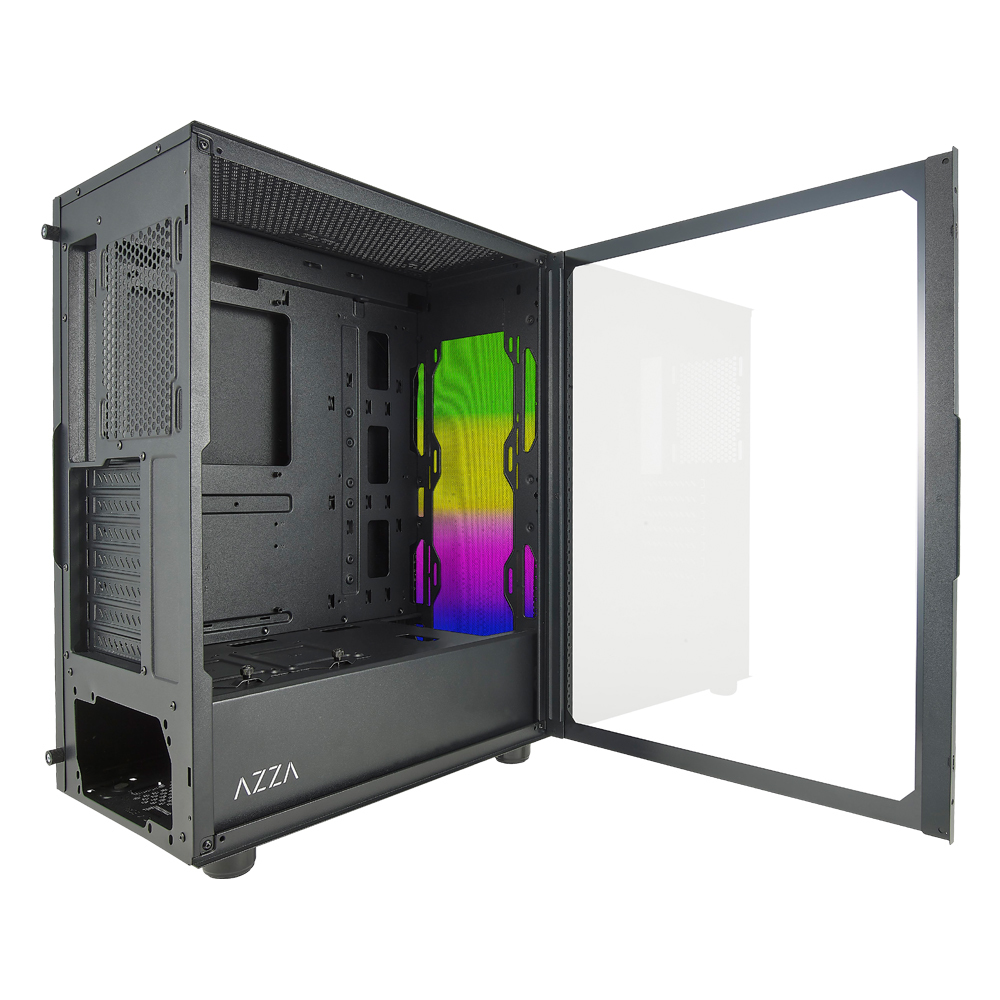

Side Panel Window Left side panel: tempered glass with rubber mounts
Max CPU Cooler Height UP to 165mm
Max video Card Length Up to 320mm long video card
Power Supply Not Included
Motherboard Compatibility ATX、Micro ATX、ITX
Expansion
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays Up to 4
Internal 3.5" Drive Bays Up to 2
Expansion slots 7
Top Ports Power button, reset button,led button, HD Audio, USB 3.0 x 1, USB2.0x2
Physical Specs
Dimension with Case Stand(HxWxD) 478X210X400mm/18.8X8.3X15.7 inches
Weight 6kg /13.2lbs
Features
Tempered Glass on Four Sides Window High-quality tempered glass side window allows for clear visuals to inner components

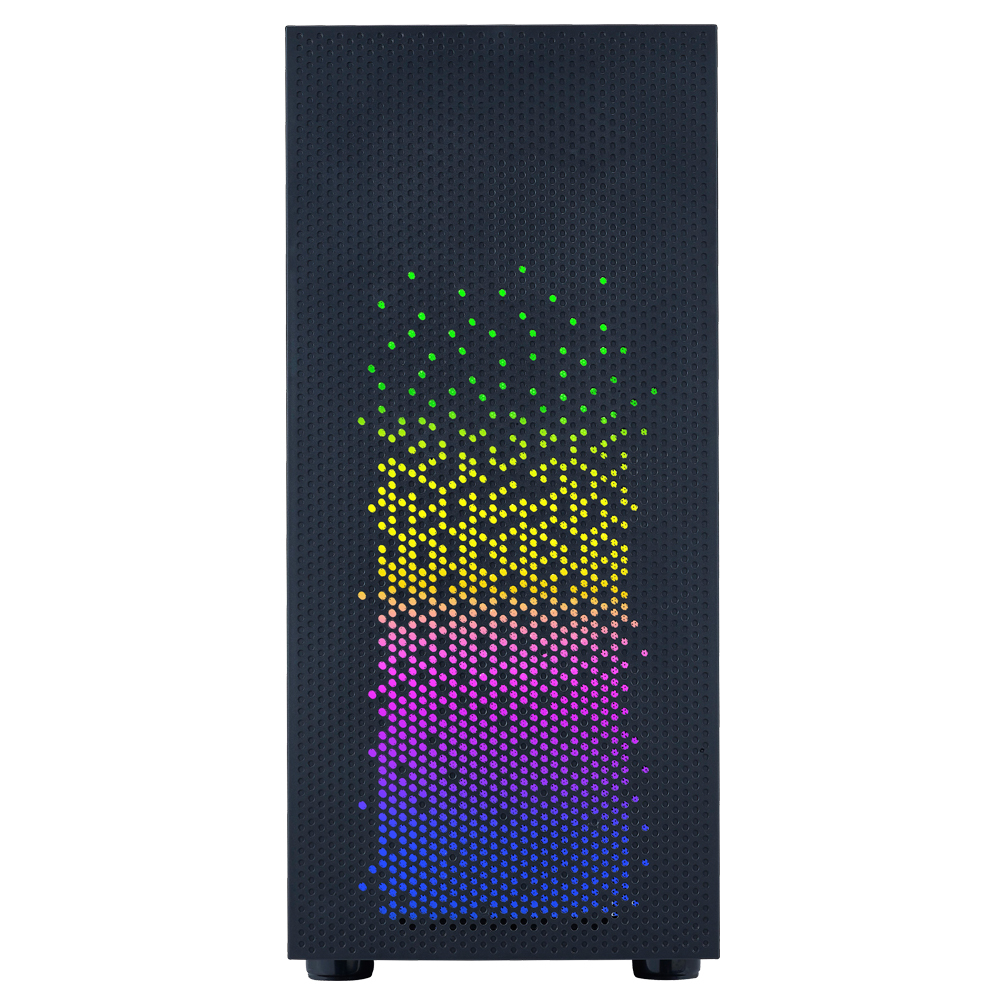

Addressable RGB Light Effects: Addressable RGB light strip in the front controlled the lighting by the LED button. To synchronize all addressable RGB light devices, it needs to be switched to be controlled only by the motherboard.
Available Fan Ports 3x120mm or 3x140mm Fan ports in the front
2x120mm or 2x140mm Fan ports on the top
1x120mm Fan port in the rear
The available fan included CSAZ-340F: Rear-1 x Black fan
CSAZ-340:Case only.
Water Cooling Supports radiators up to 280/360mm in the Front
Supports radiators up to 240mm in the Top
Dust Filters: Removable (magnetic) dustproof net on the top , iron net on bottom of chassis.
Power Supply Support: Bottom mounted ATX Power Supply

STS 2020/09/30

Azza PC Case Review

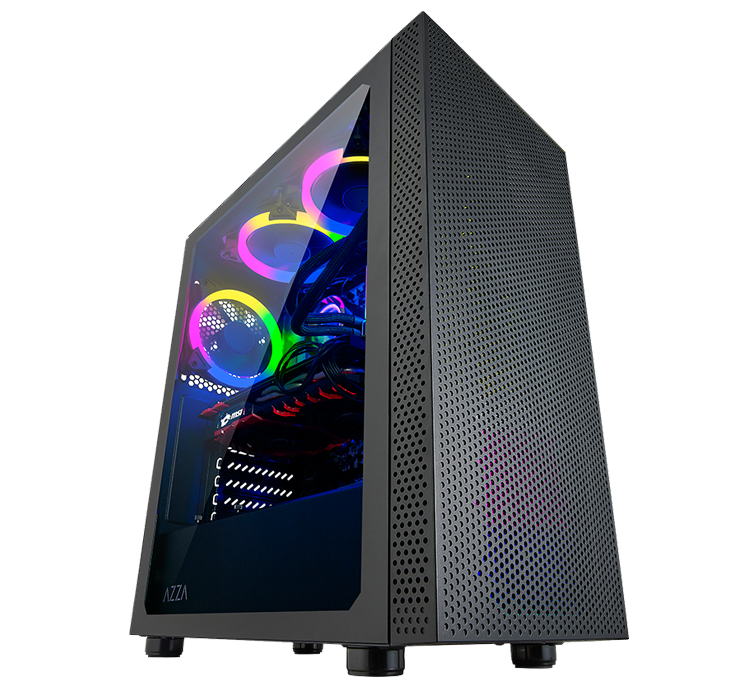

  • Inspired by the majestic night sky, the Celesta 340 is a beauty to behold.
    Its dazzling front panel design brings a bright and unique new aesthetic while still offering good thermal performance.
    It can accomodate up to a 320mm video card, a 360mm radiator, 6 fans, and 6 storage disks, giving you the freedom to build as robust of a system as you would like.


  • Option 1:CSAZ-340
    ( CELESTA 340 chassis without fan)
    Make what kind of CELESTA 340 you like, just built it.


  • Option 2:CSAZ-340F
    (CELESTA 340 chassis with 120mm Black fan)
    Black fan:
    Connect with motherboard 3pin connector.

<

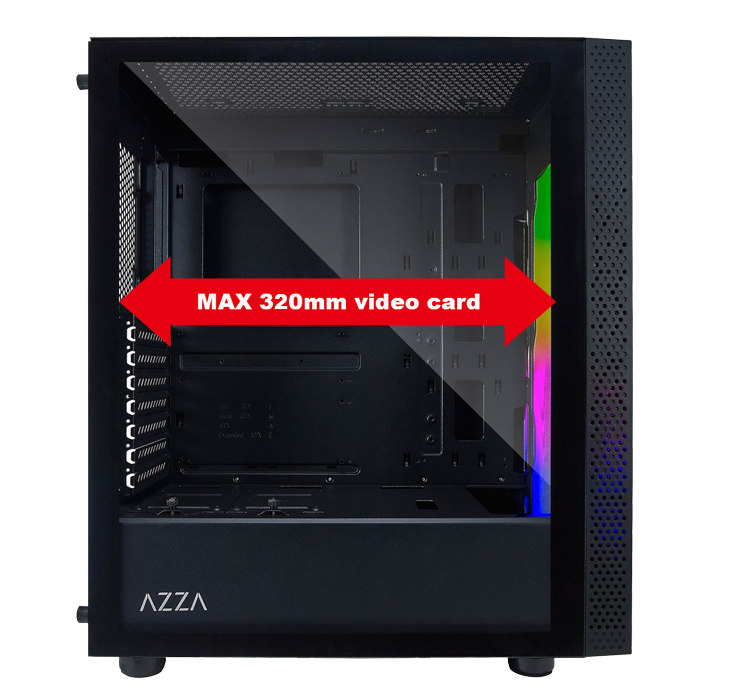

  • Supports VIDEO cards up to 320mm in length.

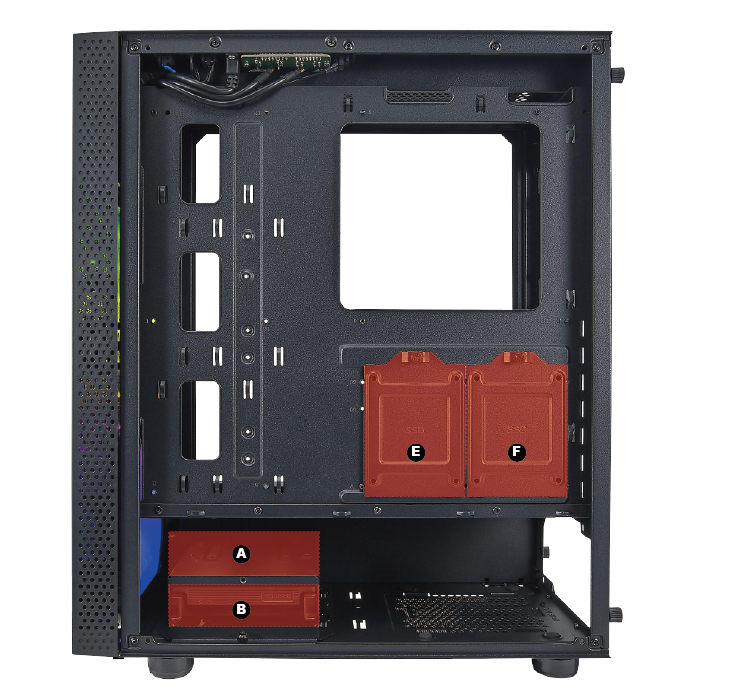

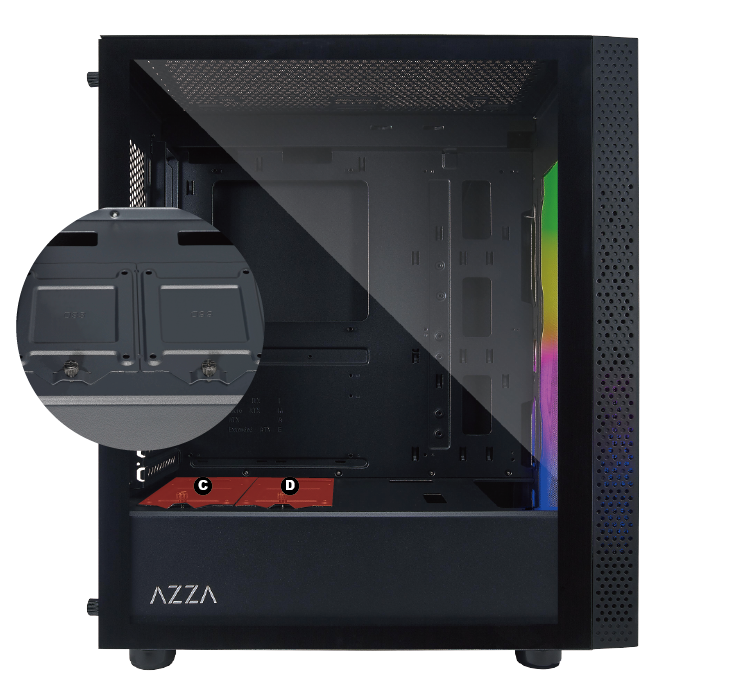

  • 2.5"SSD metal tray support 2.5”SSD x 2
    (C、D、E、F)

<

  • Multifunctional hard disk bracket support 3.5”HDD or 2.5” SSD x 1
    (B)
    Multifunctional hard disk cage support 3.5”HDD or 2.5” SSD x 1
    (A)


  • ▪Supports up to 3x120mm or 3x140mm fan
    ▪Supports up to 360mm water cooling radiator in height.

<

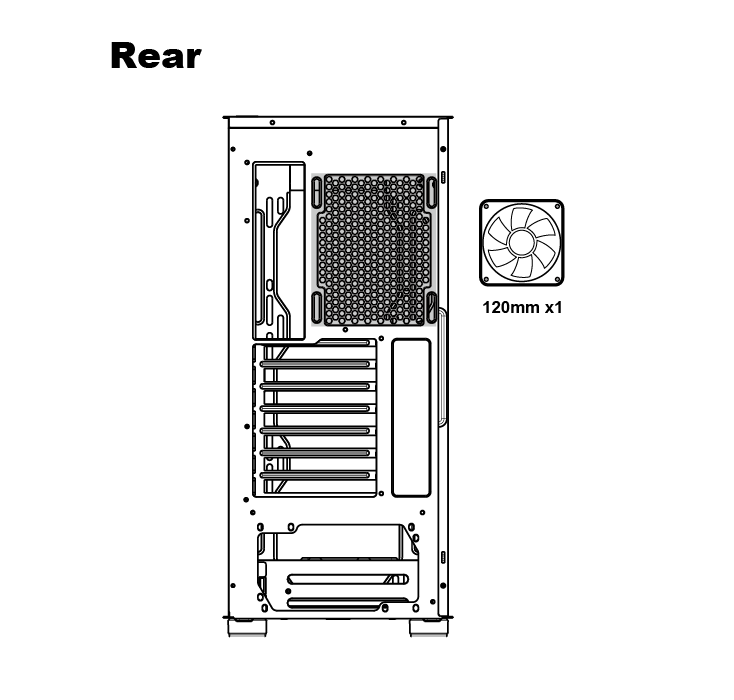

  • ▪Supports up to 1x120mm fan

<

  • ▪Supports up to 2x120mm or 2x140mm fan
    ▪Supports up to 240mm water cooling radiator in length.

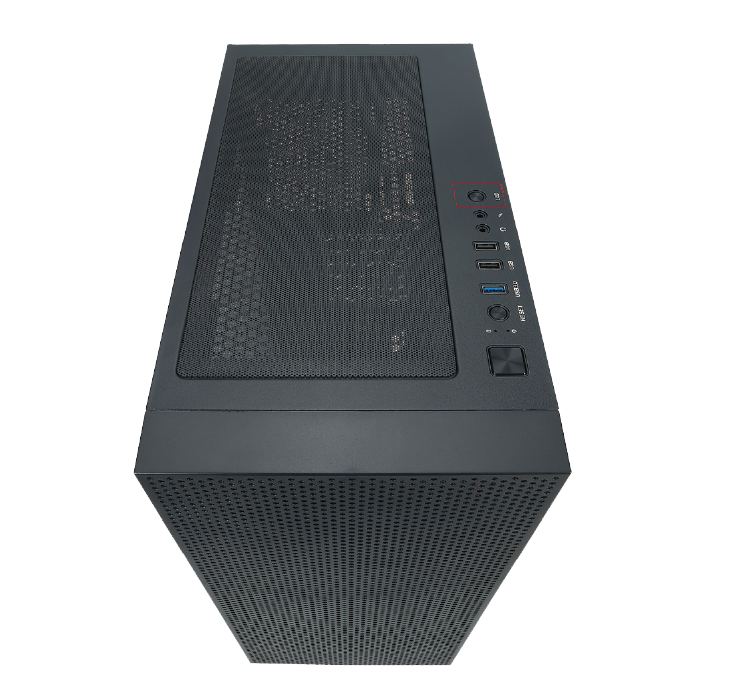

  • ▪To control the front panel ARGB lighting modes, press the LED button to cycle through 13 RGB lighting modes.
    ▪Hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.
    ▪To synchronize all addressable RGB light devices, it needs to be switched to be controlled only by the motherboard.
