DIMENSIONS：350mm x 350mm x 350mm (H x W x D)
▪Supports up to 320mm long video card.
▪Available Fan Ports:
4x120mm ports in the front
(4xHurricane II Digital RGB Fan included for model CSAZ-802F only)
1x120mm port in the rear
(1xHurricane II Digital RGB Fan included for model CSAZ-802F only)
▪Supports radiators up to 240mm in the Front
|Model Name||Cube 802|
|Model Number||CSAZ-802 / CSAZ-802F|
|Type||ATX、ITX Full Tower|
|Color||Black (exterior)/Black (interior)|
|Case Material||0.6~1.5mm SPCC|
|Side Panel Window||Left、Right、Top side of panel : Tempered Glass With Rubber Mounts|
|Max CPU Cooler Height||Up to 165mm|
|Max video Card Length||Up to 320mm long video card|
|Power Supply||Not Included|
|Motherboard Compatibility||ATX、Micro ATX、Mini ITX|
|External 5.25" Drive Bays:||0|
|Internal 2.5" Drive Bays||Up to 2|
|Internal 3.5" Drive Bays||1|
|Digital RGB Light Effects(both variants come with digital RGB light strips)||All digital RGB light strips are controlled by RF remote. For model CSAZ-802F, up to 5 digital RGB fans can be controlled by the motherboard. For model CSAZ-802F, please plug all digital RGB fans into an RGB 5V connector on a WS2812B-compliant motherboard. The digital RGB fans can then be controlled using the motherboard's native lighting control software.If you do not have a WS2812B-compliant motherboard that supports digital RGB lights, then you can connect the digital RGB fans into the included RF receiver instead, and control them using the included RF controller. To prevent the connector on a WS2812B motherboard or the RF receiver from shorting out, please do not daisy-chain more than 5 digital RGB fans together.|
|Metal Chassis dimensions(HxWxD)||350x350x350mm / 13.8x13.8x13.8 inches|
|Dimension with Case Stand(HxWxD)||593x500x514mm / 23.3x19.7x20.2 inches|
|Tempered Glass on Three Sides Window||High-quality tempered glass side window allows for clear visuals to inner components|
|Available Fan Ports||4x120mm ports in the front|
|(4xHurricane II Digital RGB Fan included for model CSAZ-802F only)|
|1x120mm port in the rear|
|(1xHurricane II Digital RGB Fan included for model CSAZ-802F only)|
|Water Cooling||Supports radiators up to 240mm in the Front|
|Isolated Chamber||Dual-chamber design, Power Supply is housed in one of the chamber bottoms, preventing its heat from affecting other components.|
|Supports the Power Supply up to 190mm in length.|
|Easy Installation Cooler||A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard|
|Accessories||1x RF Connector|
|1x RF Remote Controller|
|1x Designed Case Stand|
The Hardware Hound 2018/12/27
Azza Cube 802 Case Review
Cube 802 Case Review
tom's HARDWARE 2019/01/09
Cube 802 Case Review

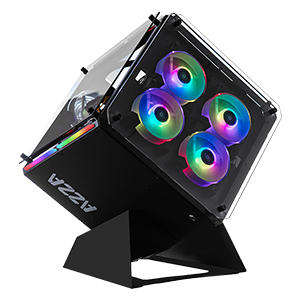

It’s out with the old, and in with the new. And cubes are now in. The Cube 802 is an aesthetically pleasing and revolutionary case with its propped-up cube design. With beautiful RGB lighting and a sleek outer casing, the Cube 802 is sure to please anyone. With high-quality tempered glass side panels on three of its faces, the case allows you to show off your awesome inner components to complement the already-attractive aesthetic of the case. However, form over function does not apply to this case, as the Cube 802 is also fully functional. It offers exceptional support for water cooling, as well as plentiful fan ports for increased cooling performance. The Cube 802 features a dual-chamber design.
Instead of cramming all your components into a single chamber and having all their residual heat affecting each other, you can now install them into separate chambers to help dissipate the heat. You can install your power supply in one chamber, and your video card in another, as these two generate a lot of heat already. Cable management is a breeze, as cables can be safely tucked away behind the motherboard, for even better cooling.
The Cube 802 supports video cards up to 320mm long, which can accommodate most video cards on the market. With both form and function in its toolbox, the Cube 802 is an exceptional offering for any gamer.
Hurricane II Digital RGB Fan Installation For Motherboard
Connecting a strip to an incorrect connector can potentially cause damage to the LED strip, due to the RGB, and Digital RGB connectors providing different voltages .
Our digital RGB devices are WS2812B-compliant. Each fan contains 10 digital/addressable LED diodes. The WS2812B standard supports up to 60 diodes at the maximum for a single header, so please do not daisy-chain more than 5 digital RGB fans together.
